HY-250ULD SMT PCB Automatic Unloader
Model No: HY-250ULD

The HY-250ULD is a PCB automatic magazine unloader. It's used to unload circuit boards in SMT assembly line.

 Product Enquiry

Features and Benefits

  • Enhanced aluminum structure and plastic chains makes machine more stable during operation.
  • LED TFT touch screen control panel, easy to operate.
  • Standard SMEMA communication with another unit
  • With 0.7m conveyor platform
  • Panasonic PLC
  • Four step pitches selection (10, 20, 30, 40mm)
  • 2 magazines exchange keep the board loading uninterrupted.
  • Special structure with Anti-jammed and foolproof function



Technical Specifications

Dimension

L1700*W780*H1200±30mm

Magazine size

L355*W320*565mm

Max PCB size

L330*W250mm

Transport height

920±20mm

Transfer direction

Left to right/ right to left

Belt speed

0-8m / min, adjustable

PCB edge support

3mm

Power supply

100-230v AC

Power voltage

350w

Air supply

4-6 bar

Air consumption

max 10 L/min

PCB unloading time PCB

approx. 6 seconds

Pitch distance

10, 20, 30, 40mm

Magazine qty

2pcs





RELATED PRODUCTS

HY-250 SMT PCB Automatic Loader

HY-250 SMT PCB Automatic Loader
HY-460BF SMT PCB Buffer

HY-460BF SMT PCB Buffer

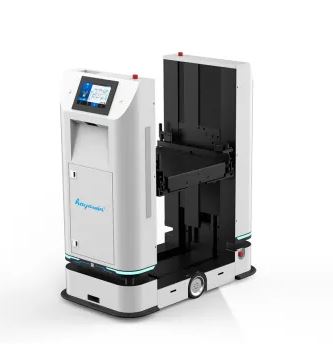

HY-AGV250 SMT AGV Equipment (Magazine Type)

HY-AGV250 SMT AGV Equipment (Magazine Type)
HY-SC460-SMT PCB Smart Code Scanning Conveyor

HY-SC460-SMT PCB Smart Code Scanning Conveyor
HY-X3 SMT PCB Labeling Machine

HY-X3 SMT PCB Labeling Machine
YS-BF460A/460AS | SMT PCB NG/OK Buffer

YS-BF460A/460AS | SMT PCB NG/OK Buffer
YS-CV460 | SMT PCB Conveyor

YS-CV460 | SMT PCB Conveyor

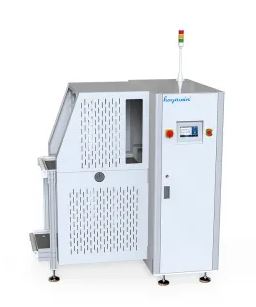

YS-LD250/330/390/460 SMT PCB Magazine Loader
