Miniaturized Online Automatic PCB Depaneling Machine High Precision EXE-180M

Model No:	EXE-180M

Product Enquiry

Introduction to the equipment configuration of the miniaturized online automatic depaneling machine EXE-180M:

Place the product sub-board jig on the processing platform sub-board. After the processing is completed, the sub-board jig is clamped and placed on the track to flow into the lower process.

After the product is cut, the reclaiming gripper clamps the entire product jig and places it on the discharge track to transport it to the next production process

The miniaturized online splitter adopts an automatic tool-changing spindle imported from Germany. It saves time, realizes automation, reduces human factors, has high precision and strong stability
Built-in four sets of milling cutter magazines, which are convenient for automatic replacement of milling cutters and meet the needs of sub-panel processing.

Pick and place device: automatic loading and unloading (modular vacuum suction claw, vacuum device, can be independently controlled)
Transmission structure: X2 axis moves Z2, Z3 axis sucks, AC servo motor control.
Board taking speed: 0-1000mm/sec (can be set)

The vacuum suction cup take-up shaft sucks the cut product one-time vacuum suction and places it on a special product fixture to transport it to the next production process.

Technical Specification

Sub-board work range	180mmx180mm
XYZ drive mode	ac servo motor
Number of motion axes	7 axes
Program teaching method	Colour CCD video intuitive teaching input
Operation interface	win7 window interface
Upper vacuum power	2hp
Lower dust collector power	3hp (option 5hp)
Cutting spindle sycotec (Germany)	max80000rpm (automatic tool change)
x-y ac servo speed	0-1000mm/sec
z ac servo speed	0-800mm/sec
x-y repeatability	±0.01mm
Cutting accuracy	±0.02mm
CCD camera calibration accuracy	±0.01mm
Split plate stress value	Below 300uε
Tool diameter	0.8-2.3mm
PCB board cutting thickness	0.2mm-6.0mm
Main engine and dust collector voltage	220v 1φ and 3φ
Power consumption	3.5kva
Static Elimination Gun
visual system	High-resolution digital camera
Drive motor	AC brushless servo motor
Mechanical pick and place arm	Anti-static vacuum nozzle
Feeding method	rail transport
Outlet method	Belt conveying or carrier output or rail conveying
Transfer method	Vacuum suction nozzle adsorption transfer
Flow direction	left→right
program backup	USB interface
Control method	Dedicated controller
Dust cabinet size	640mm×785mm×1760mm(D×W×H)
Machine size	1340mm×800mm×1528mm(D×W×H)
Host + dust collector weight	1000kg

Other Products in this Category

Automatic PCB Depaneling Machine Upper Vacuuming Structure EXE-880

Double Spindle Online Milling Cut PCB Depaneling Equipment Lower Vacuum Spindle Structure EXE-91O LAT

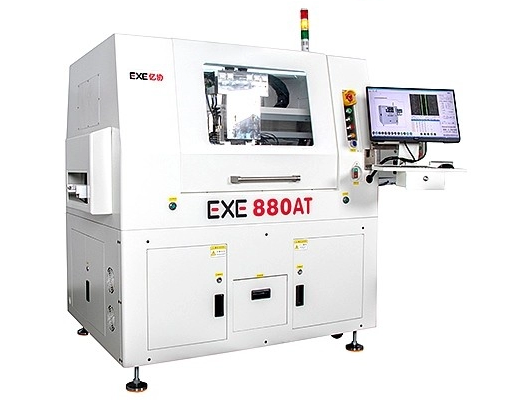

Milling Cut Type PCB Depaneling Router Machine Automated 7 Axes EXE-880 AT
